Intra-Aortic Balloon Pump

• Primary Use: Temporary mechanical circulatory support for cardiogenic shock, high-risk PCI, and post-cardiotomy support
• Mechanism: Counterpulsation — diastolic inflation increases coronary perfusion, systolic deflation reduces afterload
• Position: Proximal descending thoracic aorta, 1-2 cm distal to left subclavian artery
• Gas: Helium (low density for rapid movement, inert, rapidly absorbed if leak)
• Volume: 25-50 mL depending on patient height
• Expected benefit: Modest ↑ stroke volume/cardiac output (0.5-1.0 L/min), improved perfusion pressures
• Key limitation: Requires organized ventricular contraction — minimal benefit in VF/VT or severe LV standstill

What the Balloon is Doing

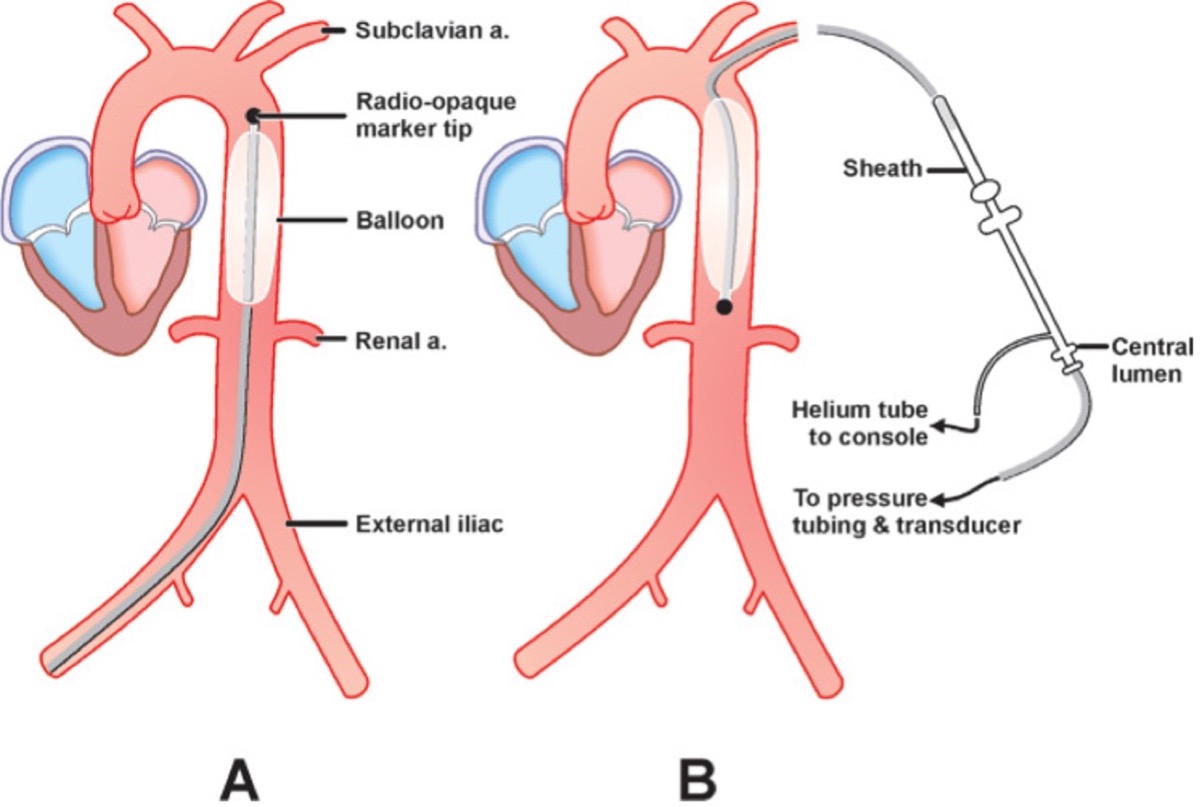

• Sits in proximal descending thoracic aorta, 1-2 cm distal to the left subclavian origin
• Volume ~25-50 mL depending on patient height
• Filled with helium (very low density → rapid movement; inert and rapidly absorbed if leak)
• Inflation in early diastole displaces blood both proximally (toward aortic root/coronaries) and distally (toward visceral and peripheral beds)
• Deflation just before systole creates a transient 'vacuum' in the aorta → ↓ aortic end-diastolic pressure → ↓ LV afterload and earlier aortic valve opening

Primary Hemodynamic Effects

• ↑ Diastolic aortic pressure → ↑ coronary perfusion (especially subendocardium)
• ↓ LV afterload → ↓ LV wall tension and ejection pressure
• ↓ Duration of isovolumetric contraction (major O₂-consuming phase) → ↓ myocardial O₂ demand
• Net: modest ↑ stroke volume/cardiac output (often 0.5-1.0 L/min), improved systemic perfusion pressures

Secondary/Systemic Effects (Variable)

• ↓ Pulmonary capillary wedge/LA pressures (offloading LV)
• ↓ SVR (functional afterload reduction)
• ↑ Cerebral and renal perfusion pressures when MAP improves

Think in terms of the arterial line – the IABP is just reshaping that waveform.

Key Features of a Normal Assisted Beat

• Unassisted systolic pressure: the native peak on an unassisted beat
• Dicrotic notch: marks aortic valve closure — this is your reference for inflation
• Augmented diastolic peak: tallest peak, appears immediately after the dicrotic notch when balloon inflates
• Assisted end-diastolic pressure: lowest point just before the next systolic upstroke — should be lower than the unassisted end-diastolic pressure
• Assisted systolic pressure: systolic peak after deflation — should be slightly lower than unassisted systolic pressure

Rules of Thumb for Correct Timing

• Inflation: sharp 'V' at the dicrotic notch; augmented diastolic peak immediately after
• Deflation: trough occurs halfway down the diastolic downslope before the next systolic upstroke
• Assisted end-diastolic pressure < unassisted end-diastolic pressure
• Augmented diastolic peak > unassisted systolic peak

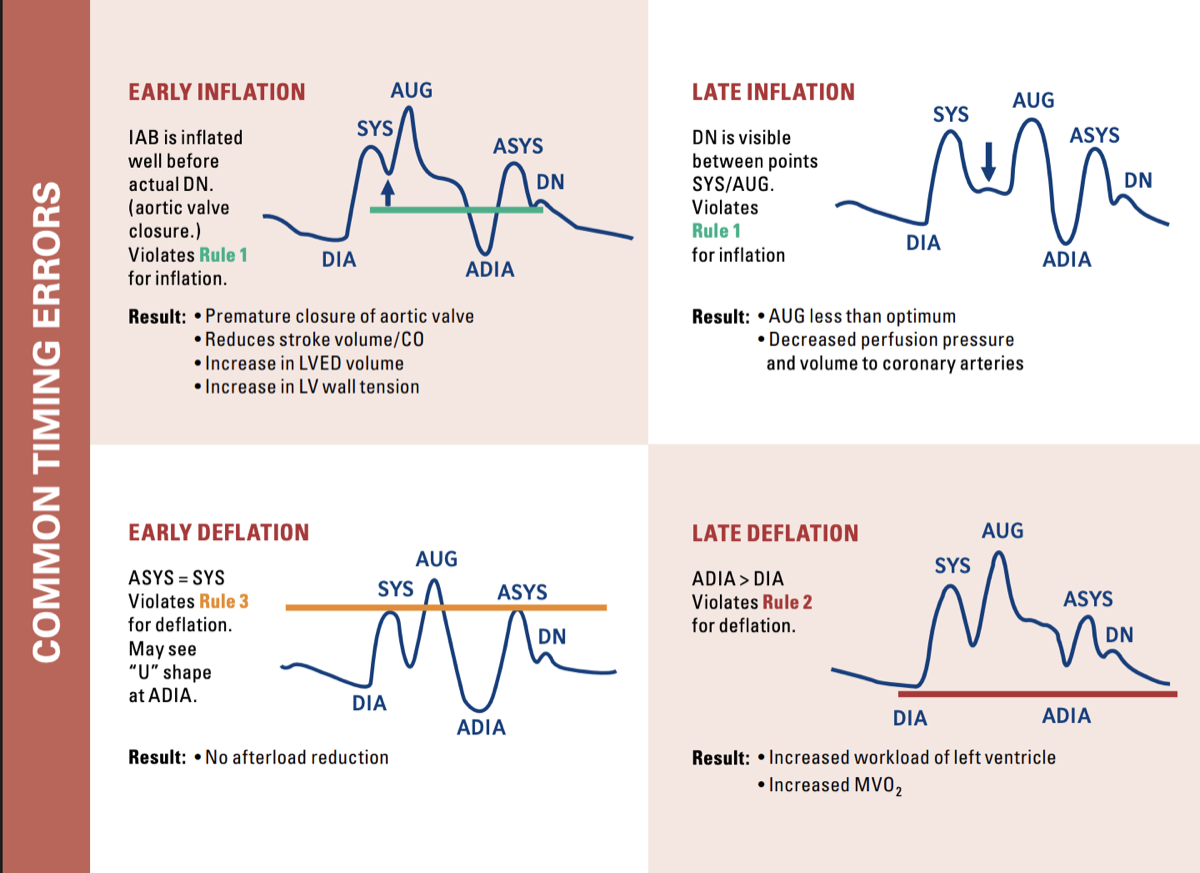

Classic arterial waveform patterns and what they mean:

Trigger Options

• ECG (R-wave): preferred trigger; best when QRS is tall/consistent
• Arterial pressure (AP): useful in atrial fibrillation, paced rhythms, or noisy ECG; uses upstroke of arterial waveform
• Internal/asynchronous: last resort (e.g., during arrest with no reliable ECG/AP); keeps balloon moving to limit thrombus but does not provide true counterpulsation

Assist Ratios

• 1:1 — balloon inflates every beat; default for shock and transport; maximal support
• 1:2 — every second beat assisted; used to check timing and during early weaning
• 1:3 — minimal support; late weaning step in stable patients

Typical Weaning Approach

(Institutional protocols vary)

1. Confirm readiness: CI ≥ ~2.2-2.5 L/min/m², MAP ≥ 65 mmHg, no escalating vasoactive support, rhythm stable
2. Stepwise reduce assist ratio (1:1 → 1:2 → 1:3) while keeping balloon volume unchanged
3. Reassess hemodynamics, lactate, and perfusion with each step; if MAP, CI, or symptoms worsen, step back up
4. Only once stable on low assist (e.g., 1:3) do you proceed to removal

Common Real-World Indications

• Cardiogenic shock after acute MI (especially LV failure with ongoing ischemia)
• Mechanical complications of MI — acute severe MR (papillary muscle rupture) or VSD as a bridge to surgery
• Refractory unstable angina/ongoing ischemia despite maximal medical therapy
• Post-cardiotomy low-output syndrome and difficulty weaning from bypass
• Bridge to more definitive support (LVAD/ECMO) or to high-risk PCI/CABG in selected patients
• Refractory ventricular arrhythmias
• Cardiotoxicity (e.g., verapamil overdose)

Key Contraindications (Absolute/Strong Relative)

• Severe aortic regurgitation (balloon inflation worsens regurgitant volume)
• Aortic dissection or significant thoracic/abdominal aortic aneurysm
• Severe peripheral vascular disease or iliac occlusive disease where catheter would critically reduce flow
• Uncontrolled bleeding or severe coagulopathy may make insertion/removal unsafe
• Patent ductus arteriosus
• Thoracic aortic graft <12 months old

Important Limitations to Remember

• Requires organized ventricular contraction — minimal benefit in severe LV standstill or VF/VT without perfusing beats
• Does not directly support RV failure or isolated right-sided cardiogenic shock
• Effect size is modest compared with ECMO/LVAD — think of it as a 'fine-tuning' device rather than a full replacement pump
• Benefit is highly dependent on correct timing and rhythm; AF with RVR or frequent ectopy can reduce effectiveness
• Requires minimum cardiac index of 1.2-1.4 L/min/m² for clinical benefit
• Heart rate >130 bpm reduces efficiency

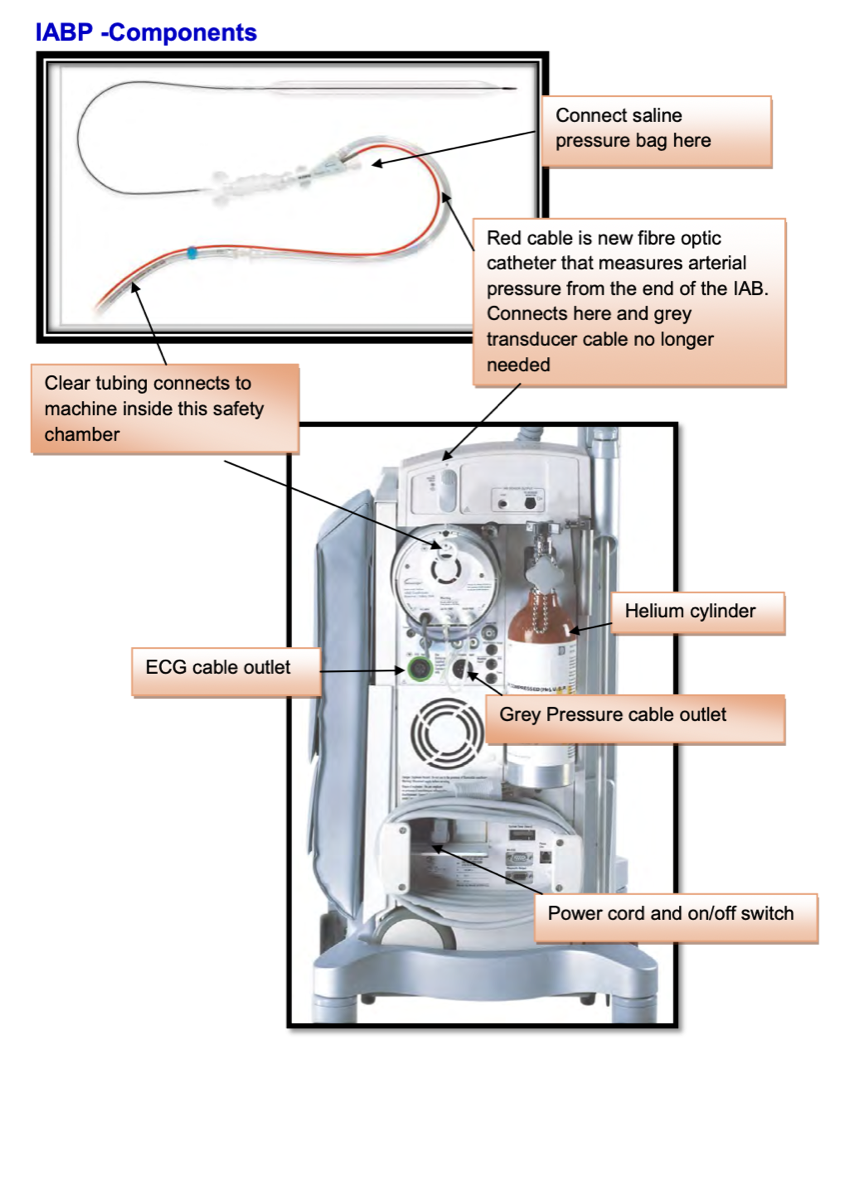

• Always travel with: a charged pump, spare helium tank, and reliable power source; verify battery status before leaving
• Keep the IABP running whenever possible — a static balloon is a thrombus magnet; if off, manually inflate/deflate per protocol
• Patient positioning: leg with femoral catheter straight; avoid hip flexion; log-roll rather than sit-up if possible
• Monitor distal limb perfusion (pulses, Doppler, color, temperature, cap refill) at least hourly or per unit policy
• Watch urine output and renal function — low output may suggest low flow or balloon too distal (obstructing renal arteries)
• Secure all tubing and cables; avoid tension on the catheter during transfers and log-rolls
• Use gentle sedation/analgesia to control anxiety and prevent leg movement while preserving hemodynamics
• Defibrillation/cardioversion: the pump is isolated/protected, but everyone still needs to be 'clear'
• In cardiac arrest: consider arterial-triggered or internal-trigger modes to keep the balloon moving during CPR if there is an adequate pressure signal

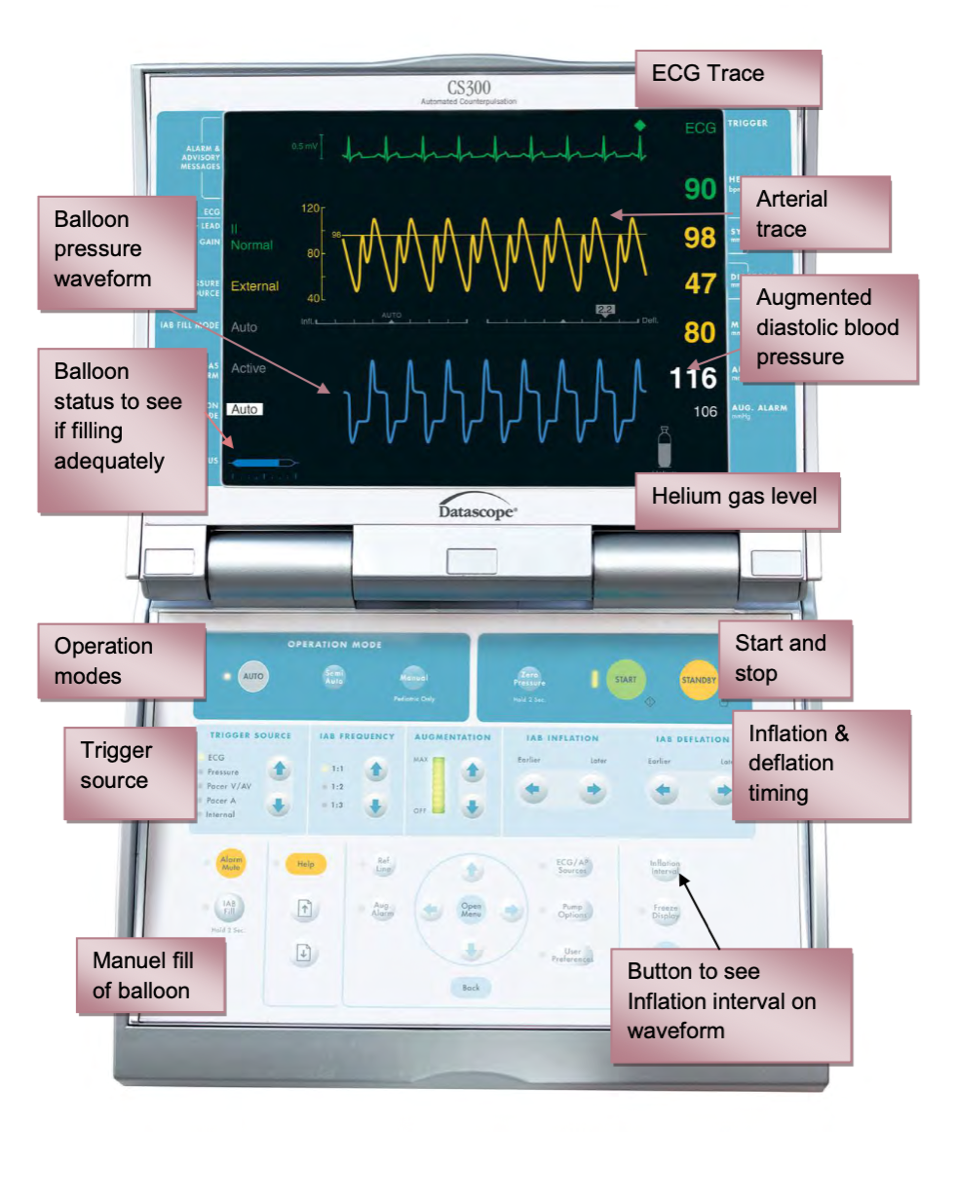

Alarms & What They Usually Mean

• Loss of trigger: check ECG quality, lead placement, cables; if needed, switch to arterial trigger
• Loss of pressure waveform: check pressure bag, tubing, stopcocks, transducer level/zero, or use an alternate arterial line
• Gas leak / rapid helium loss: inspect catheter/tubing for kinks or disconnections; look for blood in the helium tubing → suspect balloon rupture → stop pump and notify provider immediately
• High plateau pressures: may indicate hypertension, reduced aortic compliance, or incorrect balloon volume/position
• Low plateau pressures: may indicate hypotension, low SVR, or underfilled balloon; correlate with patient and console settings

Clinical Red Flags Requiring Urgent Review

Complications

During use:

• Limb ischemia (up to 25%)
• Helium embolism from balloon rupture
• Hemolysis
• Thrombocytopenia
• Peripheral neuropathy
• Infection

During/after removal:

• Hematoma
• Pseudoaneurysm
• Arteriovenous fistula
• Catheter entrapment
